For use in short range against soft targets and in anti-personnel role. Extremely successful in anti-terrorist operations and low intensity conflicts. Uses NATO standard low velocity 40mm x 46mm ammunition. Can use all confugurations of 40mm x 46mm (HE, HEDP, AP and TP).

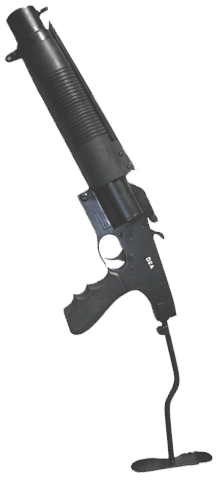

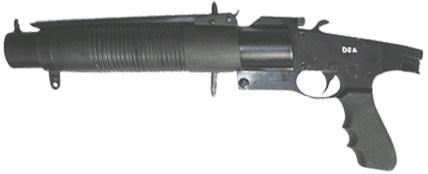

Made of specified steel on state-of-the art CNC machines. Illuminous (glow in the dark) front bead and graduations of the aperture sight. Availability of spares is guaranteed. Available in both Fixed Butt and Folding Butt configurations. The picture is of the Folding Butt model.

Specifications:

Calibre
40 x 46mm
Operation Break open - Single shot
Feeding System Manual loading
Rifling Right hand - 6 grooves
Barrel length 350mm approximately
Range 400m (depending upon the ammunition)
Muzzle velocity As per the ammunition specifications
Sights Aperture sight graduated in 50m
Length 710mm approximately
Safety Manual safety







Copyright 2003-17. All rights reserved. Daudons Armoury, Industrial Estate, Kohat Road, Peshawar, Pakistan.
Note: We reserve the right to make any changes to our products as we may deem necessary without any notice. Please confirm with us the latest specifications.
